Mesin pemotong laser serat 1500W untuk logam

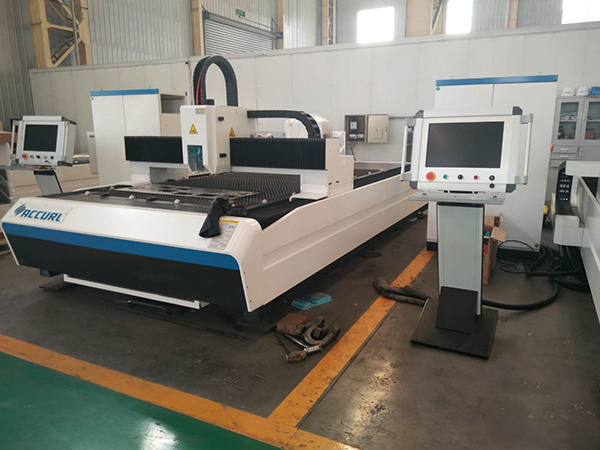

1500W Laser Cutting Machine for Metal

Spesifikasi


Cutting Area:L3000mm* W1500mm
Cutting Speed: Adjustable
Format Graphic Supported: AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
Aplikasi: Laser Cutting
Kawontenan: Anyar
Cutting Thickness:0-25mm metal
CNC or Not: Ya
Mode Pendinginan: Cooling Banyu
Control Software:BECKHOFF
Papan Asal: Anhui, China (Dharatan)
Jenama: ACCURL
Sertifikasi: CE, ISO, SGS
Warranty: 2 Taun
Laser Power:1000W /1500W/ 2000W / 2500W/3000W/4000W/ 6000W
Wilayah kerja: 1500mmX3000mm / 2000mmX4000mm / 2000mmmX6000mm
Working Table Structure:Pallet Working Table
Driving Mode:Double ball screw driving / Double gear rack driving
Akurasi Posisi: ± 0,03mm
Cooling System:High precision constant temperature water chiller
Keyword:hot sale metal laser cutting machine

CNC Fiber Laser Cutting Metal Advantages


1) Fiber laser cutting is the fastest process for thin sheet metal.
2) A “clean cut” surface quality is obtained.
3) Reflective materials like aluminium,copper and brass can be cut with ease.
4) Parts process cost is very low.
5 ) Little to maintenance costs.
6) Consumable part cost is low. The only parts that need to be changed are nozzles, ceramics and protection glasses over long periods. There are no other consumable costs.
7) Resonator life is over 100,000 working hours.

Main Technical Parameters


Tipe LaserFiber laser generator
Laser Power1000W/2000W/3000W/4000W
Wilayah kerjaL3000mm* W1500mm
Working Table StructurePallet Working Table
Control SystemBECKHOFF
Driving ModeDouble gear rack driving
Idle/Processing Speed100m/min ;  30m/min
Akurasi Posisi± 0,03mm / m
Cooling SystemDual temperature dual control chiller
Protection SystemEnclosure protection
Laser HeadRaytools laser cutting head
Power SupplyAC220V ± 5% 50 / 60Hz ; AC380V ± 5% 50 / 60Hz
Total Daya17KW / 8- 22KW
Support FormatPLT, DXF, BMP, AI, DST, DWG, etc.
Floor Space9m*4m
Other Standard CollocationMetal nesting software, dual pressure gas route of 3 kind gas sources, dynamic focus, remote controller, etc.
* Technical data, dimensions, appearance and color of machine are subject to change without notifi

CNC Machine Introduction


1) Standard collocation of 2KW fiber laser generator and optional 700W,1000W,3000W fiber laser generator realize low operation and maintenance cost and maximum long-term investment returns and profits.
2) Enclosure design meets CE standard which realizes reliable and safe processing. Shuttle table/pallet working table is convenient for material uploading and unloading and further promotes working efficiency.
3) Aiming at high speed cutting, we design and manufacture strengthened welded machine body after 2 times of aging process which ensures long-term accuracy and stability of performance.
4) Standard collocation of dual pressure gas control system of 3 gas sources (high pressure air, nitrogen, oxygen) meets the processing requirement of all kinds of materials. Easy operation and low cost.
5) Standard collocation of automatic nesting software (including material management and optimized processing technology) and database of process parameters is provided for easy operation and simple management.
6) Optimized optical lens, specially designed nozzle and sensor technology realize smoother and more stable cutting. Optional collocation of 2000mm×4000mm, 2000mm×6000mm working table.
